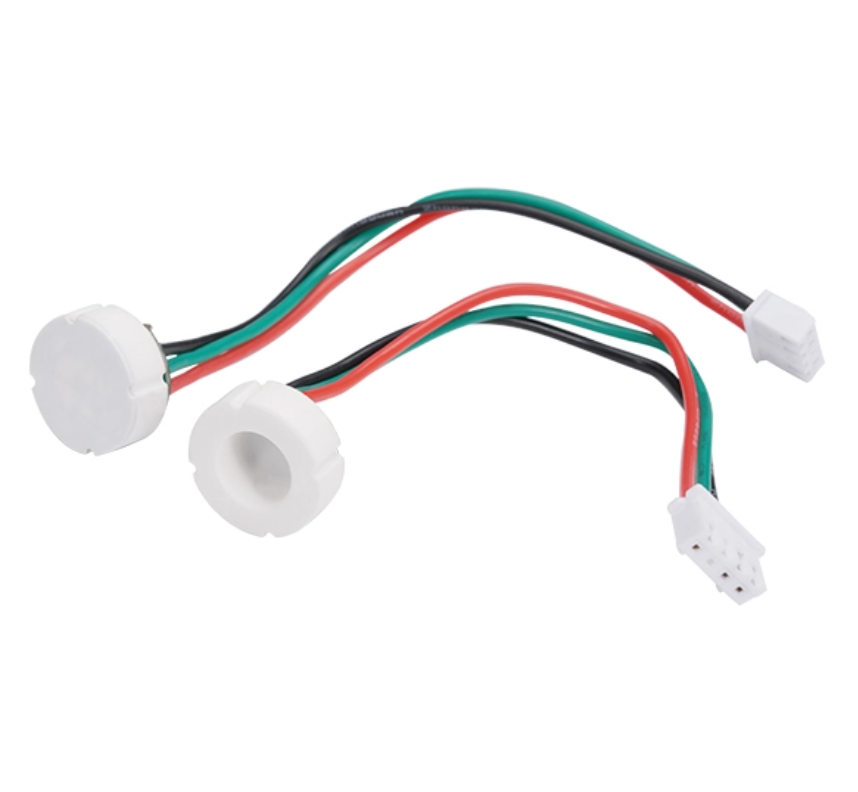

20mm X 15mm X 10mm Pressure Sensor Module with 5 MA Supply Current and 3.3V / 5V Operating Voltage for Precise Data Collection

Product Description:

The Pressure Sensor Module is a highly reliable and versatile device designed to accurately measure pressure in various applications. Weighing only 10 grams, this compact sensor module offers excellent performance while maintaining a lightweight and easy-to-integrate form factor. Its innovative design incorporates a flush diaphragm pressure sensor, which ensures precise pressure readings, minimal interference, and improved durability in demanding environments.

One of the standout features of this Pressure Sensor Module is its flexible interface options, supporting I2C, SPI, and analog outputs. This versatility allows seamless integration with a wide range of microcontrollers, data acquisition systems, and embedded platforms, making it suitable for both hobbyists and industrial professionals. Whether you need digital communication for complex control systems or analog signals for straightforward monitoring, this module caters to your requirements with ease.

Accuracy is paramount in pressure sensing, and this module excels with a nonlinearity rating of just 0.25% Full Scale (FS) max. This low nonlinearity ensures that the output pressure readings are consistently reliable across the full measurement range, reducing errors and enhancing system performance. The use of a flush diaphragm pressure sensor is critical here, as it provides a stable sensing surface that minimizes hysteresis and enhances repeatability, even under fluctuating or dynamic pressure conditions.

The flush diaphragm pressure sensor design also contributes significantly to the sensor’s robustness. By having the diaphragm flush with the surface, the sensor is less susceptible to clogging or damage from particulates and contaminants, which is a common issue in conventional recessed diaphragm sensors. This makes the Pressure Sensor Module particularly well-suited for applications involving viscous fluids, slurries, or environments with particulate matter, where maintaining sensor integrity and accuracy is challenging.

In terms of operational efficiency, the Pressure Sensor Module boasts a supply current consumption of less than 10mA. This low power draw is ideal for battery-powered or energy-sensitive applications, extending operational life without compromising measurement quality. Additionally, the sensor exhibits an exceptionally fast response time of just 1 millisecond, allowing real-time pressure monitoring and rapid system feedback. Such quick responsiveness is crucial in dynamic systems where pressure changes occur rapidly and timely data acquisition is essential for control and safety.

Overall, the Pressure Sensor Module’s combination of lightweight design, flexible interfacing, high accuracy, and rapid response makes it an excellent choice for a wide array of industries. From industrial automation and HVAC systems to automotive monitoring and medical devices, this sensor module can be deployed wherever reliable pressure measurement is needed. The integration of the flush diaphragm pressure sensor technology further elevates its performance by ensuring durability and precision in challenging environments.

To summarize, if you are seeking a pressure sensor that offers precision, durability, and versatility, the Pressure Sensor Module with its flush diaphragm pressure sensor technology is an outstanding option. Its lightweight nature at just 10 grams, low supply current consumption below 10mA, multiple interface options including I2C, SPI, and analog, nonlinearity as low as 0.25%FS max, and ultra-fast 1 ms response time collectively deliver exceptional value and performance for your pressure sensing needs.

Features:

• Product Name: Pressure Sensor Module
• High accuracy of ±1% FS
• Low nonlinearity: 0.25% FS Max
• Compact dimensions: 20mm X 15mm X 10mm
• Multiple interface options: I2C, SPI, and Analog
• Operating voltage compatible with 3.3V and 5V systems
• Features a flush diaphragm pressure sensor design for enhanced durability and performance
• Flush diaphragm pressure sensor ensures reliable and stable pressure measurements
• Flush diaphragm pressure sensor technology minimizes clogging and maintenance

Technical Parameters:

Applications:

The Songfast Pressure Sensor Module, originating from Dongguan, China, is a high-quality flush diaphragm pressure sensor designed to meet the rigorous demands of various industrial applications. Certified with ISO 9001 and IATF 16949, this pressure sensor module guarantees reliability and precision with an accuracy of ±1% FS and nonlinearity of 0.25% FS max. With a supply ability of 10,000 pieces per month and a minimum order quantity of 500pcs, it is an ideal choice for businesses looking for consistent quality and supply.

This flush diaphragm pressure sensor is suitable for a wide range of application occasions and scenarios, especially in industrial automation environments where precise pressure monitoring is critical. Its output voltage ranges from 0.5 to 4.5V DC, providing both analog voltage and digital I2C or SPI output types to ensure compatibility with various control systems and data acquisition units.

In HVAC systems, the Songfast flush diaphragm pressure sensor excels at monitoring air pressure to optimize system performance and energy efficiency. It is also highly effective in water pressure monitoring applications, where the flush diaphragm design helps prevent clogging and ensures stable readings even in fluids with particulates or impurities.

Air compressors benefit from this pressure sensor module by maintaining precise pressure control, which increases operational safety and extends equipment lifespan. Additionally, water treatment systems rely on the flush diaphragm pressure sensor for accurate pressure data, which is essential for process control and ensuring water quality standards.

Customers can order this flush diaphragm pressure sensor module at a competitive price range of $3.60 to $5.60 per piece, with packaging details tailored according to customer requirements. Payment terms are flexible via T/T, making procurement smooth and convenient.

Overall, the Songfast flush diaphragm pressure sensor module is an excellent solution for industries requiring robust, accurate, and reliable pressure sensing. Its versatility across industrial automation, HVAC, water pressure monitoring, air compressors, and water treatment systems makes it a valuable component for enhancing system performance and reliability.

FAQ:

Q1: What is the brand name of the Pressure Sensor Module?

A1: The Pressure Sensor Module is manufactured by Songfast.

Q2: Where is the Pressure Sensor Module produced?

A2: It is produced in Dongguan, China.

Q3: What certifications does the Pressure Sensor Module have?

A3: The product is certified with ISO 9001 and IATF 16949.

Q4: What is the minimum order quantity for the Pressure Sensor Module?

A4: The minimum order quantity is 500 pieces.

Q5: What is the price range for the Pressure Sensor Module?

A5: The price ranges from $3.60 to $5.60 per piece depending on the order quantity and specifications.

Q6: How is the Pressure Sensor Module packaged?

A6: Packaging is done according to customer requirements.

Q7: What payment terms are accepted for purchasing the Pressure Sensor Module?

A7: Payment is accepted via T/T (Telegraphic Transfer).

Q8: What is the supply capacity for the Pressure Sensor Module?

A8: The supply ability is 10,000 pieces per month.
