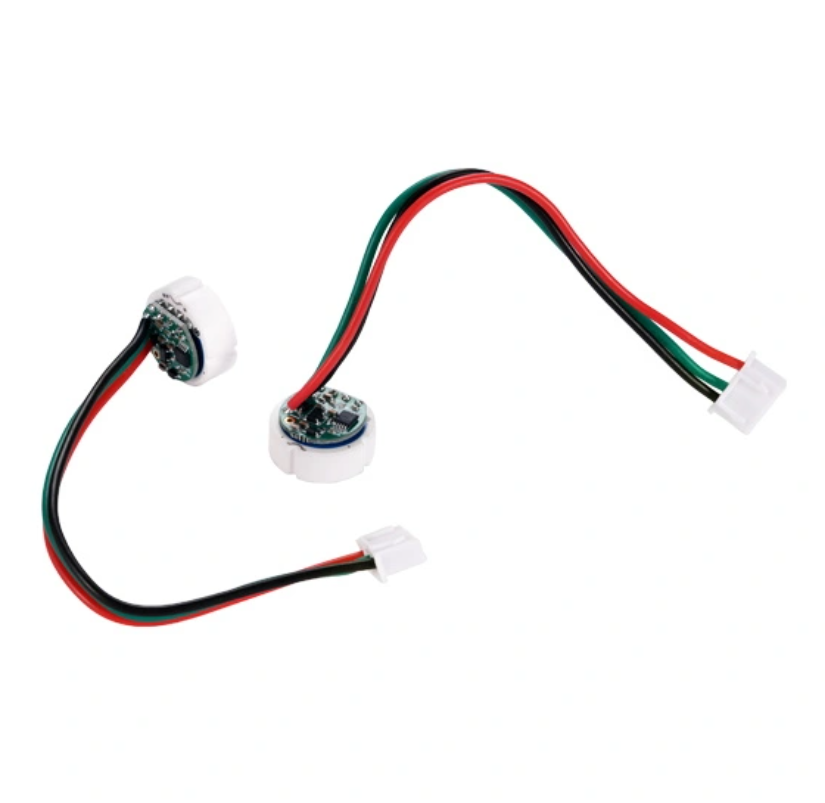

I2C Pressure Sensor Module with 0.25%FS Max Nonlinearity ±1% FS Accuracy and 0.5-4.5V DC Output Voltage for Industrial Automation

Product Description:

The Pressure Sensor Module is a highly reliable and versatile device designed to accurately measure pressure in various applications. Featuring a flush diaphragm pressure sensor, this module ensures precise and consistent pressure readings, making it ideal for industrial, automotive, and environmental monitoring systems. The flush diaphragm design is particularly advantageous as it allows the sensor to be mounted in environments where cleanliness and hygiene are critical, preventing clogging and buildup that can affect sensor performance.

One of the standout features of this pressure sensor module is its output voltage range of 0.5 to 4.5V DC. This wide voltage output ensures compatibility with a broad range of microcontrollers and data acquisition systems, allowing for seamless integration into existing electronic setups. The sensor operates efficiently at both 3.3V and 5V operating voltages, providing flexibility depending on the system requirements. This dual voltage capability makes it suitable for use in low-power battery-operated devices as well as more robust industrial systems.

Mounting options for the Pressure Sensor Module include PCB mount and threaded types, giving users the flexibility to install the sensor in a variety of configurations. The PCB mount variant is perfect for compact electronic assemblies where space is limited, while the threaded version allows for secure attachment in pipe systems or other mechanical setups. This adaptability ensures that the flush diaphragm pressure sensor can be employed in diverse applications without compromising on ease of installation or durability.

The operating temperature range of this module spans from -40°C to 85°C, ensuring reliable performance in harsh environmental conditions. Whether deployed in cold outdoor settings or warm industrial environments, the sensor maintains accuracy and stability. This robust temperature tolerance is essential for applications such as HVAC systems, weather stations, and automotive pressure monitoring, where temperature fluctuations are common.

Power consumption is a critical factor in sensor selection, and this pressure sensor module excels with a supply current of just 5 mA. This low current draw extends the battery life of portable devices and reduces energy costs in continuous monitoring systems. Despite its low power consumption, the sensor does not compromise on performance, delivering consistent and accurate data thanks to its advanced flush diaphragm pressure sensor technology.

The flush diaphragm pressure sensor integrated within this module stands out for its ability to eliminate dead volume and minimize the risk of contamination. This feature is particularly important in medical, food processing, and pharmaceutical industries where sensor hygiene is paramount. By ensuring that the pressure-sensitive area is flush with the surface, the sensor provides fast response times and high sensitivity, enhancing the overall system performance.

In summary, the Pressure Sensor Module with a flush diaphragm pressure sensor offers a perfect combination of accuracy, durability, and flexibility. Its output voltage range of 0.5-4.5V DC, compatibility with 3.3V and 5V operating voltages, and low supply current of 5 mA make it suitable for a wide range of applications. The dual mounting options and robust operating temperature range further enhance its usability across different industries. Whether you need a sensor for industrial automation, environmental monitoring, or hygienic processing environments, this flush diaphragm pressure sensor module delivers exceptional performance and reliability.

Features:

• Product Name: Pressure Sensor Module
• Supply Current Range: ＜10mA
• Operating Temperature Range: -40°C to 85°C
• Application: Industrial Automation, HVAC, Water Pressure Monitoring, Air Compressor, Water Treatment Systems
• Measurement Range: 0 to 100 Psi
• Response Time: 1 ms
• Features a flush diaphragm pressure sensor for accurate and reliable pressure measurements
• Durable flush diaphragm pressure sensor design suitable for harsh industrial environments
• High-performance flush diaphragm pressure sensor ensures fast and precise response

Technical Parameters:

Applications:

The Songfast Pressure Sensor Module, manufactured in Dongguan, China, is a high-quality flush diaphragm pressure sensor designed to meet diverse industrial and commercial needs. Certified under ISO 9001 and IATF 16949, this sensor module guarantees reliability and precision, making it an ideal choice for applications requiring accurate pressure measurement in challenging environments. With a minimum order quantity of 500 pieces and a competitive price range of $3.60 to $5.60 per piece, Songfast offers excellent value without compromising performance.

This flush diaphragm pressure sensor module is widely applicable in various occasions and scenarios. Its robust design and operating temperature range from -40°C to 85°C enable it to function reliably in harsh conditions, including outdoor installations and industrial machinery monitoring. The sensor's low supply current of less than 10mA and fast response time of 1 millisecond make it particularly suitable for real-time pressure monitoring systems where energy efficiency and quick data acquisition are critical.

In automotive industries, the flush diaphragm pressure sensor can be integrated into engine management systems to monitor oil and fuel pressure, contributing to enhanced vehicle performance and safety. Its compatibility with multiple interfaces such as I2C, SPI, and analog outputs allows seamless integration with various microcontrollers and data acquisition systems, providing flexibility for system designers.

Additionally, the module’s operating voltage options of 3.3V and 5V accommodate a wide range of electronic platforms, from low-power embedded systems to more demanding industrial controllers. The packaging of the pressure sensor module is customizable according to customer requirements, ensuring the product fits perfectly into the intended application environment.

In medical equipment, the flush diaphragm pressure sensor is instrumental in devices that require sterile and hygienic conditions, as its flush diaphragm design minimizes contamination risks. It is also commonly used in HVAC systems for accurate air pressure measurements, ensuring optimal climate control and energy savings.

Furthermore, the sensor finds applications in water treatment plants, pneumatic systems, and process control industries where precise pressure monitoring is crucial. With Songfast’s supply ability of 10,000 pieces per month and flexible payment terms via T/T, customers can rely on consistent product availability and professional service support.

Overall, the Songfast flush diaphragm pressure sensor module is a versatile and dependable solution for any application requiring reliable pressure sensing, fast response, and efficient power consumption, making it an indispensable component across a wide range of industries and scenarios.

FAQ:

Q1: What is the brand name of this Pressure Sensor Module?

A1: The Pressure Sensor Module is branded as Songfast.

Q2: Where is this Pressure Sensor Module manufactured?

A2: It is manufactured in Dongguan, China.

Q3: What certifications does this product have?

A3: The Pressure Sensor Module holds ISO 9001 and IATF 16949 certifications.

Q4: What is the minimum order quantity for this product?

A4: The minimum order quantity is 500 pieces.

Q5: What is the price range for this Pressure Sensor Module?

A5: The price ranges from $3.60 to $5.60 per piece, depending on specifications and order quantity.

Q6: How is the product packaged?

A6: Packaging details are customized according to customer requirements.

Q7: What payment terms are accepted for purchasing this product?

A7: Payment is accepted via T/T (Telegraphic Transfer).

Q8: What is the monthly supply capacity for this Pressure Sensor Module?

A8: The supply ability is 10,000 pieces per month.
