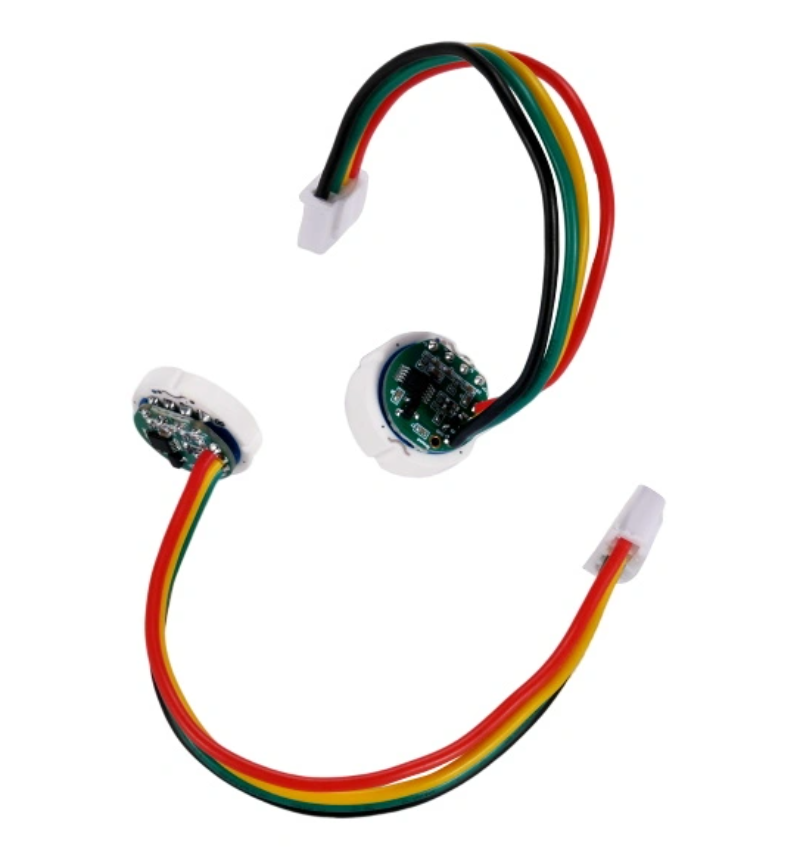

5 mA Supply Current 0.5-4.5V DC Output Voltage ±1% FS Accuracy Pressure Sensor Module with Flush Diaphragm Design

Product Description:

The Pressure Sensor Module is a highly versatile and reliable device designed to accurately measure pressure in various industrial, automotive, and consumer applications. Featuring a flush diaphragm pressure sensor, this module offers exceptional sensitivity and precision, making it ideal for environments where direct contact with the measured medium is necessary. The flush diaphragm design ensures that the sensor surface is smooth and level with the surrounding material, preventing debris accumulation and facilitating easy cleaning, which is particularly advantageous in sanitary or food-processing applications.

One of the standout features of this pressure sensor module is its output voltage range of 0.5 to 4.5V DC. This wide voltage span enables the sensor to provide a clear and linear output corresponding to the applied pressure, allowing for straightforward integration with analog-to-digital converters and microcontroller systems. The module’s low supply current of just 5 mA makes it energy-efficient, suitable for battery-powered devices or applications where power consumption is a critical concern.

The pressure sensor module supports multiple interface options, including I2C, SPI, and analog output. This flexibility allows developers to choose the communication protocol that best suits their system architecture and design requirements. The I2C and SPI interfaces provide digital communication, enabling precise data transmission and easy integration with modern embedded systems. Meanwhile, the analog output option ensures compatibility with legacy systems or simpler microcontroller inputs that rely on voltage signals for pressure measurement.

Accuracy is paramount in any pressure measurement device, and this module excels with a nonlinearity specification of just 0.25% full scale (FS) maximum. Such a low nonlinearity means the sensor output closely follows the true pressure values across its entire measurement range, minimizing errors and enhancing overall system reliability. This precision is crucial for applications requiring exact pressure monitoring, such as medical devices, industrial automation, and environmental monitoring.

Mounting versatility is another key advantage of this pressure sensor module. It is designed for both PCB mount and threaded installation, providing adaptability for various mechanical setups. The PCB mount option facilitates compact and streamlined designs, making it easy to integrate the sensor directly onto printed circuit boards for embedded solutions. On the other hand, the threaded mounting type allows secure attachment to pipes, tanks, or other equipment, ensuring a robust and leak-proof connection in fluid and gas pressure measurement scenarios.

The incorporation of a flush diaphragm pressure sensor in this module enhances its durability and performance in harsh or demanding environments. The flush design eliminates crevices where fluids or particles could accumulate, reducing the risk of sensor damage or contamination. This makes it an excellent choice for applications involving viscous, sticky, or particulate-laden fluids, as well as sterile environments where hygiene is critical.

Overall, the Pressure Sensor Module with a flush diaphragm pressure sensor combines high accuracy, low power consumption, multiple interface options, and flexible mounting capabilities to deliver a comprehensive solution for pressure measurement needs. Whether used in industrial control systems, HVAC monitoring, medical instrumentation, or automotive diagnostics, this sensor module ensures reliable and precise pressure readings, contributing to improved system performance and safety.

Features:

• Product Name: Pressure Sensor Module
• Nonlinearity: 0.25% FS Max
• Mounting Type: PCB Mount / Threaded
• Accuracy: ±1% FS
• Output Type: Analog Voltage / Digital I2C / SPI
• Weight: 10 Grams
• Features a flush diaphragm pressure sensor for enhanced performance
• Durable flush diaphragm pressure sensor design suitable for various applications
• Reliable and precise flush diaphragm pressure sensor technology

Technical Parameters:

Applications:

The Songfast Pressure Sensor Module, originating from Dongguan, China, is an advanced sensing solution designed for a wide array of application occasions and scenarios. Certified with ISO 9001 and IATF 16949, this product ensures high-quality and reliable performance, making it ideal for industries requiring precision and durability. With a minimum order quantity of 500 pieces and a competitive price range of $3.60 to $5.60 per piece, the Songfast pressure sensor module is accessible for both small and large scale projects. Its packaging details are tailored according to customer requirements, ensuring optimal protection and convenience during transportation and storage.

Equipped with a fast response time of 1 ms and a low supply current of 5 mA, the module is perfect for real-time pressure monitoring in critical environments. The operating temperature range from -40°C to 85°C allows it to function reliably in harsh conditions, making it suitable for automotive, industrial, and environmental applications. Its mounting flexibility, available in both PCB mount and threaded types, facilitates easy integration into various systems.

This pressure sensor module supports multiple output types, including analog voltage, digital I2C, and SPI, providing versatile communication options to meet diverse application needs. One of the key features of this product is the flush diaphragm pressure sensor design, which ensures accurate pressure measurement by eliminating dead volume and preventing clogging, especially useful in media with particulates or viscous fluids. The flush diaphragm pressure sensor is particularly advantageous in medical devices, food processing equipment, and chemical processing plants where hygiene and contamination prevention are critical.

In industrial automation, the flush diaphragm pressure sensor module from Songfast enables precise pressure control and monitoring in pneumatic and hydraulic systems. Its robust design and certification standards make it reliable for use in aerospace and defense applications where safety and performance are paramount. Additionally, the flush diaphragm pressure sensor is well-suited for HVAC systems, water treatment plants, and environmental monitoring stations, providing accurate data for efficient system management.

With a supply ability of 10,000 pieces per month and flexible payment terms via T/T, Songfast ensures timely delivery and customer satisfaction. The pressure sensor module’s combination of high responsiveness, durable construction, and versatile output options makes it an excellent choice for engineers and developers looking to implement advanced pressure sensing solutions in their projects. Whether for industrial machinery, medical instruments, or environmental sensors, the flush diaphragm pressure sensor module by Songfast delivers reliable performance across various application occasions and scenarios.
